Face Detection using OpenCV in Python

Posted in /

Face Detection using OpenCV in Python

Vinay Khatri
Last updated on June 9, 2022

    Face Detection is one of the main applications of Machine Learning and with Python Machine Learning Vision Library OpenCV we can detect faces in an image or a video. Face Detection is done with the help of Classifiers, the classifier detects whether the objects in the given image are faces or not. Face Detection is different from face recognition so do not confuse them with each other. In this tutorial, we will be detecting faces in an Image using the simple and basic Harr Cascade Classifier . Before start coding let's install and download the libraries and other dependencies to write a Python script to detect faces.

    Required Libraries and resources

    Install Library

    As we are using OpenCV in Python this goes without saying Python should be installed on your system. And to install OpenCV you can use the Python pip terminal command.

    pip install opencv-python


    To detect faces you required an image, and for this tutorial, we will be using the following Father-Daughter.jpg image.

    Download the Harr Cascade haarcascade_frontalface_default.xml

    As for this tutorial, we will be using Harr Cascade Classifier. Face Detection is an application of Machine Learning, and for such ML applications, we require a classifier that is trained on thousands or millions of data. And a student can not collect or generate data of his/her own, here come the OpenCV pre-trained Harr Cascade classifiers . On the OpenCV GitHub Harr Cascade pag e, there are plenty of pre-trained Classifiers, but on which we are interested in is haarcascade_frontalface_default.xml classifier. The haarcascade_frontalface_default.xml is the pre-trained classifier for the Face detection, and we will be using this pre-trained XML formated data to detect the face in OpenCV. Copy the raw code of haarcascade_frontalface_default.xml from GitHub and paste it locally on a file harr_face_detect_classifier.xml and save it. I would suggest you save the harr_face_detect_classifier.xml file in the same directory where your Face Detection Python script is located, so you can access the XML file with the related name. Now we are all set to write the Python Script which can detect Faces in an Image. Open your Best Python IDE or text editor and start coding with us.

    Face Detection with OpenCV and Python

    Start with importing the OpenCV module in your Python Script.

    import cv2 as cv

    We have imported the OpenCV cv2 module with an alias name cv After importing the OpenCV module let's load the image on which we want to detect the faces.

    #load image
    image = cv.imread("Father-Daughter.jpg")

    #cv.imshow("Image", image)  #to see the image

    To load the image we have used the cv.imread() method, and as I have mentioned above for this tutorial we will be using the "Father-Daugher.jpg" image. Note: As the image and Python script is in the same directory we are using the relative path to load the image. The classifier does not care about the skin tone of the person in the image, it simply looks for the faces present in the image and detects them. This means we do not require a color image to detect the faces, so it's always a good practice to convert the image into a grayscale image to avoid unnecessary color intensity noises.

    #convert image to grayscale image
    gray_image = cv.cvtColor(image, cv.COLOR_BGR2GRAY)

    # cv.imshow("Gray Image", gray_image) #to show the gray image

    The cv.imread() load the image into a BGR(Blue Green Red) format, and using the cv.cvtColor(image, cv.COLOR_BGR2GRAY) method we can convert the BGR image to a GrayScale Image. Now let's load the Harr Cascade classifier haarcascade_frontalface_default.xml which we copied, paste, and saved locally as harr_face_detect_classifier.xml.

    #read the harr_face_detect_classifier.xml
    harr_cascade= cv.CascadeClassifier("harr_face_detect_classifier.xml")

    The cv.CascadeClassifier("harr_face_detect_classifier.xml") will read the XML file and initialize the object as harr_cascade. Now we will use the loaded XML file object and detect faces from the GrayScale Image.

    face_cords = harr_cascade.detectMultiScale(gray_image, scaleFactor=1.1, minNeighbors=1 )


    The detectMultiScale() will detect the Faces from the GrayScale image, and return an array of coordinates face_cords for the face region. The scaleFactor value should be greater than one. We can loop over the array face_cords , grab the coordinates, and draw rectangles over those regions.

    for x, y, w, h in face_cords:
        #draw rectangle
        cv.rectangle(image, (x,y), (x+w, y+h), (255, 0,0), thickness=2)

    The cv.rectangle(image, (x,y), (x+w, y+h), (255, 0,0), thickness=2) will draw a blue(255, 0,0) rectangle over the original image based on the coordinated returned by the detectMultiScale() method. Now show the image with cv.imshow() method.

    #show image
    cv.imshow("Face Detect", image)
    cv.waitKey(0)

    #put all the code together and execute

    import cv2 as cv

    #load image
    image = cv.imread("Father-Daughter.jpg")
    # cv.imshow("Image", image)

    #convert image to grayscale image
    gray_image = cv.cvtColor(image, cv.COLOR_BGR2GRAY)

    # cv.imshow("Gray Image", gray_image)  #to show the gray image

    #read the harr_face_detect_classifier.xml
    harr_cascade = cv.CascadeClassifier("harr_face_detect_classifier.xml")

    face_cords = harr_cascade.detectMultiScale(gray_image, scaleFactor=1.1, minNeighbors=1 )

    for x, y, w, h in face_cords:
        cv.rectangle(image, (x,y), (x+w, y+h), (255, 0,0), thickness=2)

    #show image
    cv.imshow("Face Detect", image)

    cv.waitKey(0)

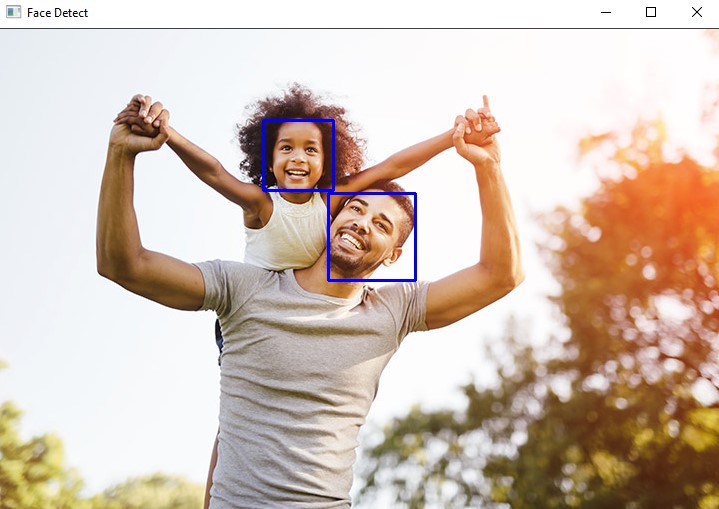

    Output When you execute the above program you will see a similar result.

    Detect Face in a live Video using Python OpenCV

    Now you know how to detect faces using an Image, we can use the same trick to detect faces from the live video or any other video stored in your system. A video is a running image, and with Python OpenCV, we can access every image frame and draw a rectangle over the video to detect the faces.

    import cv2 as cv

    #start web cam
    capture = cv.VideoCapture(0) # 0 for web-cam

    #read the harr_face_detect_classifier.xml
    harr_cascade = cv.CascadeClassifier("harr_face_detect_classifier.xml")

    while True:
        #read video frame by frame
        isTrue, frame= capture.read()

        gray_frame = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)

        face_cords = harr_cascade.detectMultiScale(gray_frame, scaleFactor=1.1, minNeighbors=1)

        #draw rectange over faces
        for x, y, w, h in face_cords:
            cv.rectangle(frame, (x,y), (x+w, y+h), (0, 255,0), thickness=2)

        #show face detect Video
        cv.imshow("Detect face live Video", frame)

        #press e to exit
        if cv.waitKey(20) ==ord("e"):
            break

    capture.release()
    capture.destroyAllWindows()


    Conclusion

    Here in this Python tutorial, you learned how to detect a face in Python using the OpenCV library. The Harr Cascade classifier is the most basic face detection classifier, and there are many other face detection techniques you can use in OpenCV. In this tutorial, we also write the Python script which detects faces from a live video, the code for detecting faces from an image or detecting faces from a video is pretty much the same. I hope you like this article, if you have any queries or suggestions related to the article or program I have provided here please let us know by commenting down below. People are also reading:
