    When it comes to designing graphics using any programming language, we need to use a graphic library. In this C++ tutorial, we will learn how to print a Man using the C++ graphics library.

    For this tutorial, I will be using the DEV C++ IDE and its default compiler to write and execute the program. If you are using any other IDE, you need to make sure that the graphics.h library is added to your compilers-dependent libraries. To know how to add graphics.h library to DevC++ and code block, click here .

    C++Program to print a Man using Graphics

    #include<graphics.h>

    int main( ){
        initwindow( 700 , 700 , "Print A Man");

       //man head
       ellipse(320,95,360,0,25,20);
       //man cap
       line(298,85,341,85);
       //man left eye
       circle(310,90,2);
       //man right eye
       circle(330,90,2);
       //man smile
       arc(320,100,200,-20,10);

       //man left neck line
       line(313,115,313,125);
       //man right neck line
       line(328,115,328,125);


       //man sholder
       arc(320,225,72,107,100);
       //man shirt left line
       line(290,129,290,200);
       //man shirt right line
       line(350,129,350,200);
       //man shirt buttom up line
       line(290,193,350,193);
       //man shirt buttom down line
       line(290,200,350,200);

       //man left leg left line
       line(290,200,285,280);
       //man left leg right line
       line(320,225,305,280);
       //man right leg left line
       line(322,225,335,280);
       //man right leg right line
       line(350,200,355,280);

       //man left hand upper arm
       line(290,129,255,165);
       //man left hand outer elbow
       line(255,165,290,200);
       //man left hand inner arm
       line(290,149,275,165);
       //man left hand inner elbow
       line(275,165,290,182);


       //right hand upper arm
       line(350,129,385,165);
       //man right hand outer elbow
       line(385,165,350,200);
       //man right hand inner arm
       line(350,149,365,165);
       //man right hand inner elbow
       line(365,165,350,182);

       //man shoes left pointing pointer
       line(285,280,275,287);
       //man left shoes base
       line(275,287,305,287);
       //man left shoes heel
       line(305,280,305,287);

        //man right shoes pointer
       line(335,280,335,287);
       //man right shoes base
       line(335,287,365,287);
       //man right shoes heel
       line(355,280,365,287);
    	getch();
        return 0;
    }

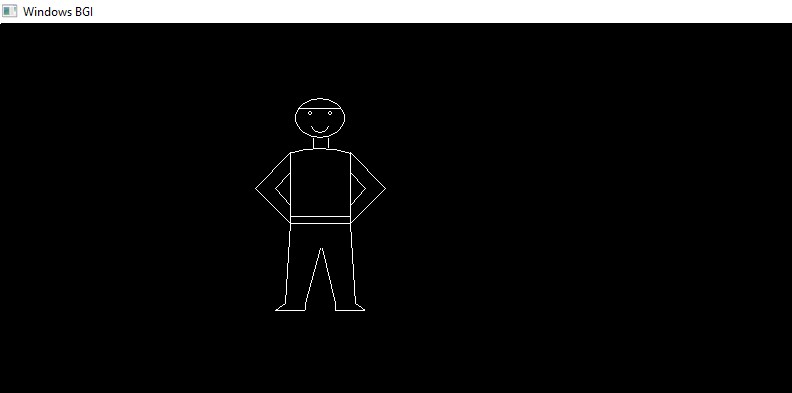

    Output

    Conclusion

    In this C++ tutorial, we learned how to print a man using the C++ graphics library. In the above program, we have used just geometric shapes to design and man. By just looking at the program, you can tell that the program is all about drawing lines, circles, eclipses, and arcs.
