Print a given matrix in spiral form

Posted in

Print a given matrix in spiral form
vinaykhatri

Vinay Khatri
Last updated on May 30, 2024

    You are given a matrix of integers, you need to print the matrix in spiral form. For Example : Consider a 2d array containing n rows and m number of columns, you need to print the matrix in spiral form without using any other matrix. Input Output : 1 2 3 4 8 12 16 15 14 13 9 5 6 7 11 10 The above output in spiral form.

    Approach 1

    If we analyze this problem very carefully, we see that there are four moments of the matrix in the first step. In the first step, the matrix is printed from left to right then right to bottom then bottom to the left, and then bottom-left to top. So to solve this problem, we create four pointers at each corner of the original matrix.

    • The top pointer will point to the first column and first row of the given matrix.
    • The right pointer will point to the first row and last column of the given matrix.
    • The bottom pointer will point to the last column and last row of the given matrix.
    • The left pointer will point to the last row and first column of the given matrix.

    Implementation:

    • Print the matrix from left to right order using the current position of the top as a row, then increase the top pointer.
    • Print the matrix from right to bottom using the current position of the right pointer as a column, then decrease the right pointer value.
    • Print the matrix from right to left using the current position of the bottom pointer as a row, then decrease the value of the bottom pointer.
    • Print the matrix from bottom to top using the current position of the left pointer as a column, then increase the left pointer.
    • Perform this iteration of printing of the matrix elements until the left pointer is smaller than equal to the write pointer and the top pointer is smaller than equal to the bottom pointer of the matrix.

    JAVA:

    //Importing libraries
    import java.io.*;
    import java.util.*;
    //Creating Main class
    class Main{
    //Function to spiral matrix
    static void print(ArrayListSpiralForm) {
        for(int i=0;i<SpiralForm.size();++i) {
            System.out.print(SpiralForm.get(i)+" ");
        }
    }

    static void spiralMatrix(int matrix[][]) {
        //Creating four pointers point the all corners of the matrix
        int top=0;//top corner
        int left=0;//left corner
        //right corner
        int right=matrix[0].length-1;
        //bottom corner
        int bottom=matrix.length-1;
        //Checking the condition
        while(left<=right&& top<=bottom) {
            //Printing the rows
            for(int i=left;i<=right;++i) {
                System.out.print(matrix[top][i]+" ");
            }
            //Update the top pointer
            ++top;
            for(int i=top;i<=bottom;++i) {
                //Printing the column from  top to bottom
                System.out.print(matrix[i][right]+" ");
            }
             //Update the right pointer
            --right;
            //Checking the condition
            if(top<=bottom) {
                    //Printing the row from right to left
                    for(int i=right;i>=left;--i) {
                       System.out.print(matrix[bottom][i]+" ");
                }
                //Update the bottom pointer
                --bottom;
            }
            if(left<=right) {
                //Printing the column from bottom to top
               for(int i=bottom;i>=top;--i) {
                    System.out.print(matrix[i][left]+" ");
                }
                ++left;
            }


        }

    }
        public static void main(String args[]) {
        //Matrix
         int matrix[][]= {{1,2,3},
                         {4,2,4}};
         //Printing the spiral matrix
         System.out.println("Printing the spiral matrix");
       //Calling the function
         spiralMatrix(matrix);
    System.out.println();
         }


    }

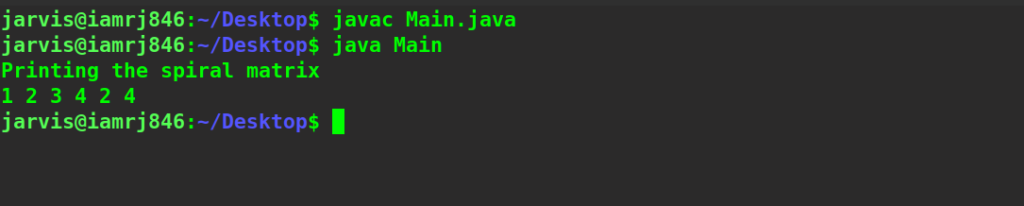

    Output:

    C++:

    //Importing libraries
    #include <bits/stdc++.h>

    using namespace std;
    #define r 3
    #define c 3


     void spiralMatrix(int matrix[r][c]) {
    	//Creating four pointers point the all corners of the matrix
    	int top=0;//top corner
    	int left=0;//left corner
    	//right corner
    	int right=r-1;
    	//bottom corner
    	int bottom=c-1;
    	for(int i=0;i<r;++i){
            for(int j=0;j<c;++j){
                cout<<matrix[i][j]<<" ";
            }
            cout<<endl;
    	}
    	//Checking the condition
    	while(left<=right && top<=bottom) {
    		//Printing the rows
    		for(int i=left;i<=right;++i) {
    			cout<<matrix[top][i]<<" ";
    		}
    		//Update the top pointer
    		++top;
    		for(int i=top;i<=bottom;++i) {
    			//Printing the column from  top to bottom
    			cout<<matrix[i][right]<<" ";
    		}
    		 //Update the right pointer
    		--right;
    		//Checking the condition
    		if(top<=bottom) {
                         //Printing the row from right to left
                         for(int i=right;i>=left;--i) {
    			cout<<matrix[bottom][i]<<" ";
    			}
    			//Update the bottom pointer
    			--bottom;
    		}
    		if(left<=right) {
                          //Printing the column from bottom to top
                          for(int i=bottom;i>=top;--i) {
    				cout<<matrix[i][left]<<" ";
    			}
    			++left;
    		}
    	}

    	int main() {
        // Given Matrix

    	 int matrix[r][c]= {{1,2,3},
    			      {4,2,5},
    			        {6,7,8}};


         //Printing the spiral matrix
    	cout<<"Printing the spiral matrix"<<endl;
        //Calling the spiralMatrix function
        spiralMatrix(matrix);
    cout<<endl;
        return 0;
    	 }

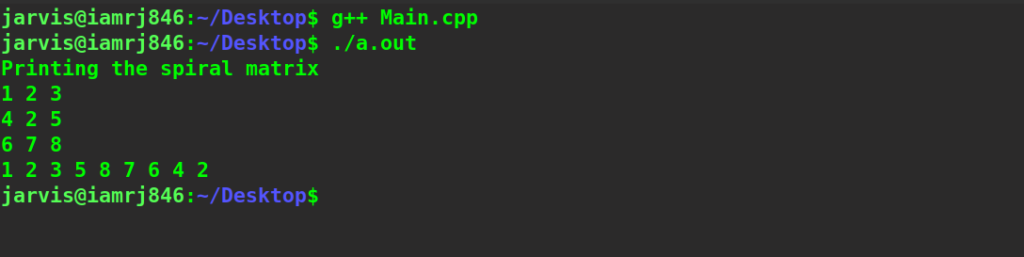

    Output:

    Python:

    #Function to print the spiral matrix
    def printspiral(mat):
    #Creating Four reference that point to the all corners of the matrix
     top=0
     left=0
     bottom=len(mat)-1
     right=len(mat[0])-1
     #Checking the condition
     while left<=right and top<=bottom:
         #Print the row first from left to right
        for index in range(left,right+1):
             print(mat[top][index],end=" ")
        top=top+1
         #Printing the matrix from top to bottom
        for index in range(top,bottom+1):
             print(mat[index][right],end=" ")
        right=right-1
        if(top<=right):

        #Printing the matrix from right to left
            for index in range(right,left-1,-1):
               print(mat[bottom][index],end=" ")
            bottom=bottom-1
        #Printing the matrix from bottom to top
        if(top<=bottom):
            for index in range(bottom,top-1,-1):
                print(mat[index][left],end=" ")
            left=left+1

    #Main Function
    def main():
        #Matrix
        mat = [
            [1,2,3]
            ,[4,5,6],
            [7,8,9]

        ]
        #Call Function to print the spiral matrix
        print("Printing the matrix in the spiral form")
        printspiral(mat)
        print()
    #Calling the main function
    main()

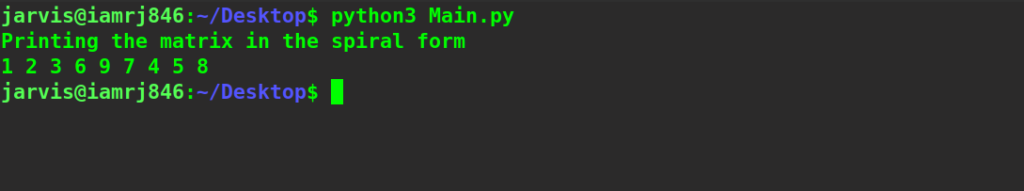

    Output:

    Complexity :

    • Time Complexity : The Time complexity of this approach is O(n^m). Where n is the total number of rows and m is the total number of columns in the original matrix.
    • Space Complexity : The Space Complexity of this approach is O(1). Because in this approach all operations are done on an original matrix, that’s why the space complexity of this approach is O(1).

    Approach 2 (Using Recursion approach):

    In this approach, we will use recursion to solve this concept similar to the above approach . So to solve this problem we create four pointers at each corner of the original matrix.

    • The top pointer will point to the first column and first row of the given matrix.
    • The left-right pointer will point to the last column of the given matrix.
    • The bottom pointer will point to the last column and last row of the given matrix.
    • The left pointer will point to the last row and first column of the given matrix.

    Implementation:

    • Print the matrix from left to right order using the current position of the top as a row, then increase the top pointer.
    • Print the matrix from right to bottom using the current position of the right pointer as a column, then decrease the right pointer value.
    • Print the matrix from right to left using the current position of the bottom pointer as a row, then decrease the value of the bottom pointer.
    • Print the matrix from bottom to top using the current position of the left pointer as a column, then increase the left pointer.
    • Recursively call the function for the next top, bottom, left, right pointers of the matrix.

    JAVA :

    //Importing libraries
    import java.util.*;
    import java.io.*;
    class Main{
      //Function to print the spiral matrix
      static void spiralmatrix(int matrix[][],int left_pointer,int right_pointer,int top_pointer,int bottom_pointer ){
        //Printing the top row
        //Checking the condition
        if(left_pointer>right_pointer){
          return;
        }
        //Printing the matrix from left to right
        for(int i=left_pointer;i<=right_pointer;++i){
          System.out.print(matrix[top_pointer][i]+" "); }
         ++top_pointer;
         //Checking the condition
         if(top_pointer>bottom_pointer){
             return;
        }
        //Printing the matrix from top to bottom
        for(int i=top_pointer;i<=bottom_pointer;++i){
            System.out.print(matrix[i][right_pointer]+" ");
             }
        --right_pointer;
        //Checking the condition
        if(left_pointer>right_pointer)
          return;
        for(int  i=right_pointer;i>=left_pointer;--i){
          System.out.print(matrix[bottom_pointer][i]+" ");

        }
        --bottom_pointer;
        //Checking the condition
    if(top_pointer>bottom_pointer)
    return;
    //Printing the matrix from bottom to the top
        for(int i=bottom_pointer;i>=top_pointer;--i){
          System.out.print(matrix[i][left_pointer]+" ");
        }
        ++left_pointer;
        spiralmatrix(matrix, left_pointer, right_pointer, top_pointer, bottom_pointer);
      }
      public static void main(String[] args) {
        int matrix[][]={{1,2,3},
                        {4,5,6},
                        {7,8,9}};
        //Creating four pointers
        int left=0;
        int top=0;
        int right=matrix[0].length-1;
        int bottom=matrix.length-1;
        //Call function to print the matrix int spiral form
        System.out.println("Printing the matrix in the spiral form");
        spiralmatrix(matrix,left,right,top,bottom);
    System.out.println();
      }
    }

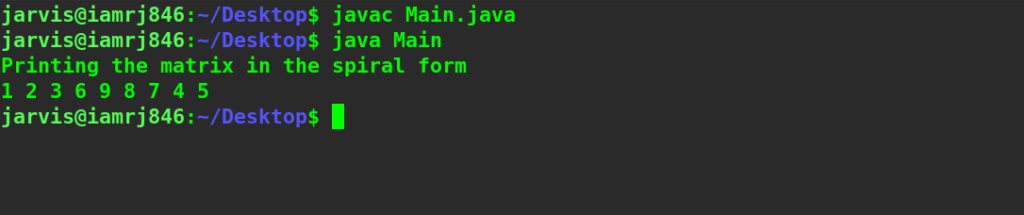

    Output:

    C++:

    //Importing libraries
    #include <bits/stdc++.h>

    using namespace std;
    #define r 3
    #define c 3

     void spiralMatrix(int matrix[r][c],int left_pointer,int right_pointer,int top_pointer,int bottom_pointer) {

    //Printing the top row
        //Checking the condition
        if(left_pointer>right_pointer){
          return;
        }
        //Printing the matrix from left to right
        for(int i=left_pointer;i<=right_pointer;++i){
         cout<<matrix[top_pointer][i]<<" ";
          }
        ++top_pointer;
        //Checking the condition
        if(top_pointer>bottom_pointer){
          return;
        }
        //Printing the matrix from top to bottom
        for(int i=top_pointer;i<=bottom_pointer;++i){
           cout<<matrix[i][right_pointer]<<" "; }
        --right_pointer;
        //Checking the condition
        if(left_pointer>right_pointer)
          return;
        for(int  i=right_pointer;i>=left_pointer;--i){
          cout<<matrix[bottom_pointer][i]<<" "; }
        --bottom_pointer;
        //Checking the condition
        if(top_pointer>bottom_pointer)
           return;
    //Printing the matrix from bottom to the top
        for(int i=bottom_pointer;i>=top_pointer;--i){
          cout<<matrix[i][left_pointer]<<" ";
        }
        ++left_pointer;
        spiralMatrix(matrix, left_pointer, right_pointer, top_pointer, bottom_pointer);

    }
    	int main() {
        // Given Matrix

    	 int matrix[r][c]= {{1,2,3},
    			    {4,2,5},
    			     {6,7,8}};
        //Creating Four pointers
         int left=0;
        int top=0;
        int right=c-1;
        int bottom=r-1;
         //Printing the spiral matrix
    	cout<<"Printing the spiral matrix"<<endl;
        spiralMatrix(matrix,left,right,top,bottom);
    	cout<<endl;
        return 0;
    	 }

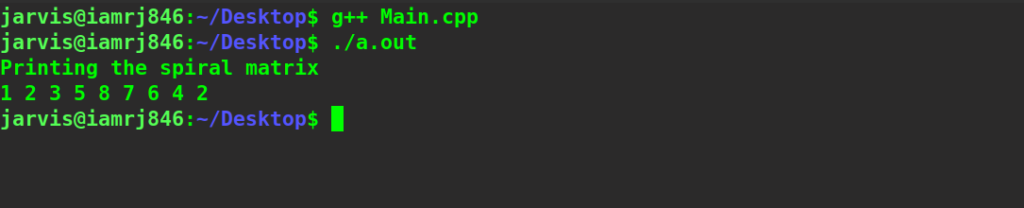

    Output:

    Python:

    #Function to print the spiral matrix
    def printspiral(mat,left_pointer,right_pointer,top_pointer,bottom_pointer):
    #Creating Four reference that point to the all corners of the matrix

     #Checking the condition
        if left_pointer>right_pointer:
            return
         #Print the row first from left to right
        for index in range(left_pointer,right_pointer+1):
             print(mat[top_pointer][index],end=" ")
        top_pointer=top_pointer+1
        #Checking the condition
        if top_pointer>bottom_pointer:
            return
        #Printing the matrix from top to bottom
        for index in range(top_pointer,bottom_pointer+1):
             print(mat[index][right_pointer],end=" ")
        right_pointer=right_pointer-1
        #Checking the condition
        if(left_pointer>right_pointer):
            return

        #Printing the matrix from right to left
            for index in range(right_pointer,left_pointer-1,-1):
               print(mat[bottom_pointer][index],end=" ")
            bottom_pointer=bottom_pointer-1
        #Checking the condition
        if(top_pointer>bottom_pointer):
            return
        #Printing the matrix from bottom to top pointer
        for index in range(bottom_pointer,top_pointer-1,-1):
                print(mat[index][left_pointer],end=" ")
        left_pointer=left_pointer+1
        #Recursively call
        return printspiral(mat,left_pointer,right_pointer,top_pointer,bottom_pointer)

    #Main Function
    def main():
        #Matrix
        mat = [
            [1,2,3]
            ,[4,5,6],
            [7,8,9]

        ]
        #Call Function to print the spiral matrix
        print("Printing the matrix in the spiral form")
        #Creating Four pointers
        top=0
        left=0
        bottom=len(mat)-1
        right=len(mat[0])-1
        printspiral(mat,left,right,top,bottom)
    #Calling the main function
    main()

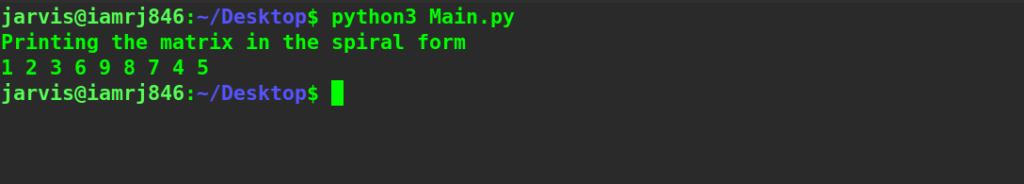

    Output:

    Complexity :

    • Time Complexity : The Time complexity of this approach is O(n^m). Where n is the total number of rows of the original matrix and m is the total number of columns of the matrix.
    • Space Complexity : The Space Complexity of this approach is O(n^m). Where n is the total number of rows of the matrix and m is the total number of columns of the matrix. The Space Complexity is O(n^m) because of the recursive call stack.

    Conclusion

    Printing a given matrix in spiral form is one of the most interesting problems of Data structure. In this article, we have discussed two approaches to solve this problem. One is the naive approach, the next one is the recursive implementation of the naive approach. There are so many variations that can be made from this problem and this problem is most commonly asked during technical interviews.  We hope this article will help you to understand the problem statement and you will be able to solve any other variation of this problem. Happy Coding!
